DNS Оптический коммутационный шнур OM2, 50/125, 2xSC-SC Увеличить

DNS Оптический коммутационный шнур OM2, 50/125, 2xSC-SC

200218

Новый товар

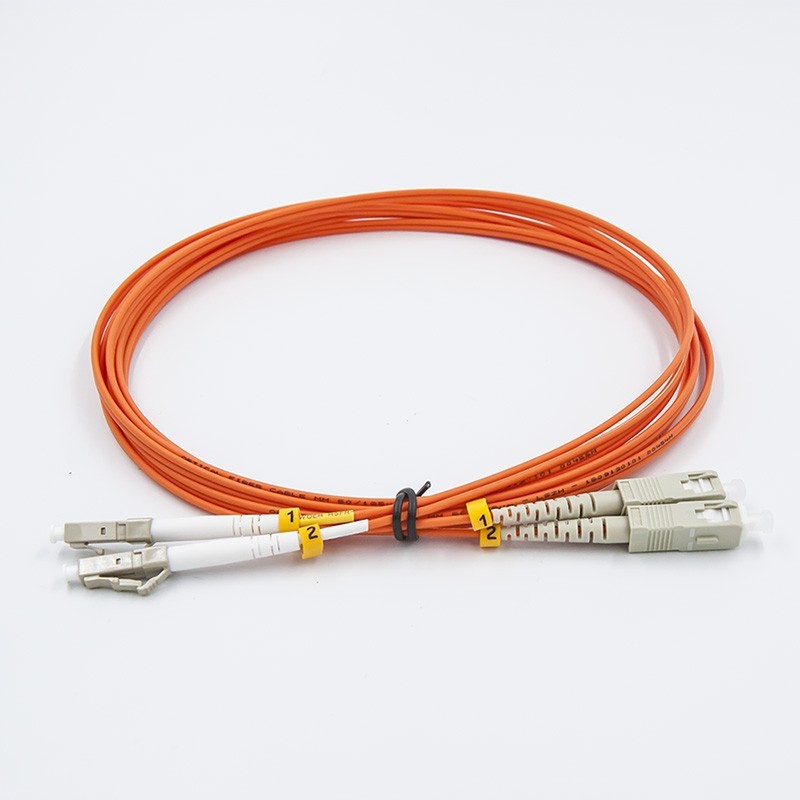

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3, 5, 10 and 15 meter, terminated on one side with two SC connectors and on the other side with two LC connectors.

Подробнее

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3, 5, 10 and 15 meter, terminated on one side with two SC connectors and on the other side with two LC connectors. Connectors feature simple matching (push-pull coupling with a snap) and rectangular cross-section allowing dense packing of the connectors on the panel.

The optical fiber used in the patch cord is OM2. It provides full compatibility with existing fiber-optic networks based on multimode fibers. The average fiber attenuation is 3.5 dB/km at 850 nm and 1.5 dB/km at 1310 nm. The optical fiber is reinforced by aramid fibers (Kevlar) and covered with PVC sheath.

FEATURES

  • Kevlar reinforced
  • Comes in standard with 2mm outer jacket.
  • All connectors are equipped with zirconia ferruls and conform to TIA/EIA568.3, Bellcore GR-02
  • Testprotocol comes with each item.
  • Bending radius: 30 mm



 Ordering information

Code Description Length
200218 DNS OM2 2xLC-SC, 50/125 1 m
200219 DNS OM2 2xLC-SC, 50/125 2 m
200220 DNS OM2 2xLC-SC, 50/125 3 m
200221 DNS OM2 2xLC-SC, 50/125 5 m
200222 DNS OM2 2xLC-SC, 50/125 10 m
200223 DNS OM2 2xLC-SC, 50/125 15 m

Subject to change without notice

Разъемы SC (A, B) - SC (A, B)
Вносимые потери ≤0.3dB
Обратные потери ≤25dB
Cтабильность ≤0.1dB
Долговечность ≤0.2dB, typically change 1000 matings
Взаимообмен ≤0.1dB
Предел прочности more than 10 kg
Длина патч-корда 1, 2, 3, 5, 10 and 15 meter
Тип волокна 50/125, OM2
Цветовое кодирование Orange / Gray connectors
Стандарты EN6079-1-23; EN60874-1:2012; Telecordia GR-326-CORE; EN50173

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
