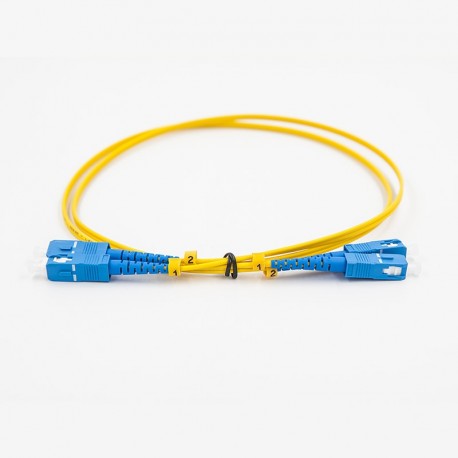

Оптический коммутационный кабель, одномодовый, 2хSCU-SCU

Артикул 200200

Состояние: Новый товар

Single mode optical patch cord with two SC/UPC connectors on both ends. Available length 1, 2, 3, 5, 7, 10 and 15 m.

Подробнее

Печать

Описание
Характеристики
Скачать
Гарантия

FEATURES

Zirconia ferrules
100% tested
Good durability
Low insertion loss
Low back reflection loss
High temperature stability
Good exchengeability
Duplex core
Easy splitting for Simplex
2 mm O.D.
Excellent environmental stability
Excellent mechanical stability
25 years DNS warranty
RoHS Compliant

Performance overview

DNS optical patch cords are equipped with zirconia ferrules. Each patch cord comes with test protocol. Patchcord are included in DNS 25 year warranty system.

Ordering information

Code	Description	Length
200200	Fiber optic patch cable, Single-mode, 2xSCU-SCU	1 m
200201	Fiber optic patch cable, Single-mode, 2xSCU-SCU	2 m
200202	Fiber optic patch cable, Single-mode, 2xSCU-SCU	3 m
200203	Fiber optic patch cable, Single-mode, 2xSCU-SCU	5 m
200302	Fiber optic patch cable, Single-mode, 2xSCU-SCU	7 m
200204	Fiber optic patch cable, Single-mode, 2xSCU-SCU	10 m
200205	Fiber optic patch cable, Single-mode, 2xSCU-SCU	15 m

Subject to change without notice

Разъемы	SCU (A, B) - SCU (A, B)
Вносимые потери	≤0.3dB
Обратные потери	≤25dB
Cтабильность	≤0.1dB
Долговечность	≤0.2dB, typically change 1000 matings
Взаимообмен	≤0.1dB
Предел прочности	more than 10 kg
Длина патч-корда	1, 2, 3, 5, 7, 10 and 15 m
Тип волокна	SM
Цветовое кодирование	Orange / Gray connectors
Стандарты	EN6079-1-23; EN60874-1:2012; Telecordia GR-326-CORE; EN50173

Гаратния (англ.)

DNS Warranty Program

Скачать (437.14k)

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
