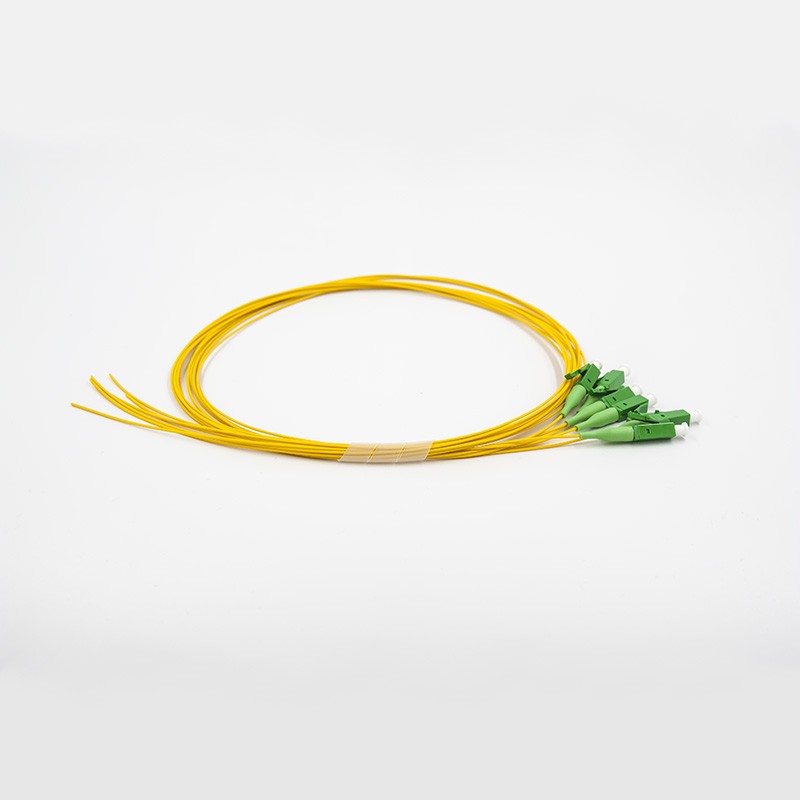

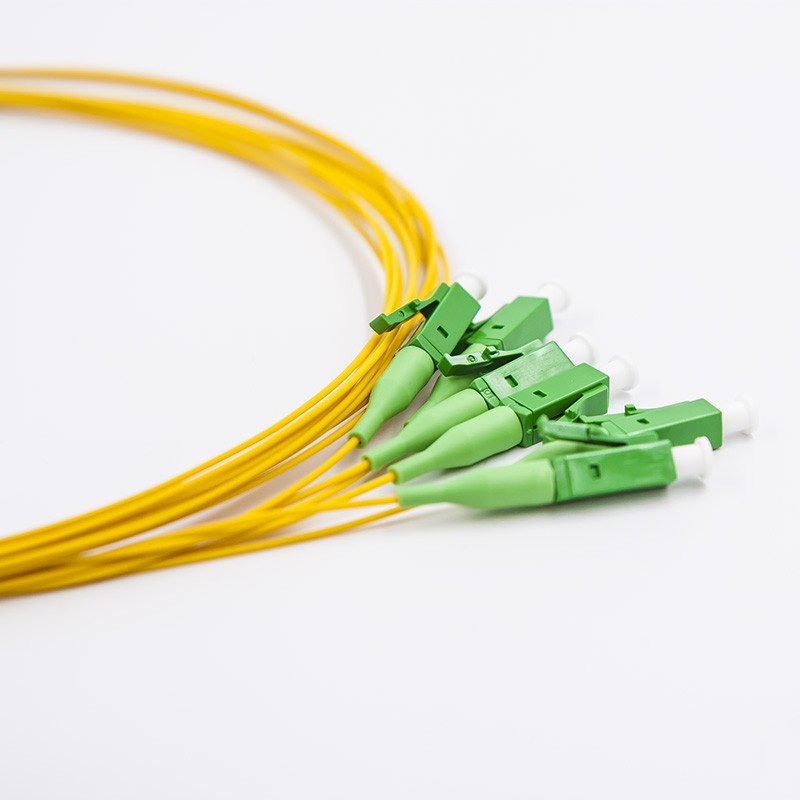

Оптический пигтейл SM, LC/APC G.657, 1m

200375

Новый товар

DNS singlemode pigtails are equipped with ceramic ferrules and delivered with 900µm secondary coating. Pigtail is equipped with LC/APC connector on one end.

Подробнее

FEATURES

  • Zirconia Ferrules
  • 100% tested
  • 25 Year DNS Warranty
  • RoHS Compliant
  • Good Durability
  • Low Insertion Loss
  • Low Back Reflection Loss
  • High Temperature Stability
  • Good Exchangeability
  • 0.9mm O.D



PERFORMANCE OVERVIEW

DNS multimode pigtails are equipped with ceramic ferrules and delivered with 900um secondary coating. All pigtails are subjects for DNS 25 year warranty system.



 Ordering information

Code Description Length
200375 Fiber optic pigtail, SM, LC/APC, G.657 1 m

Subject to change without notice

Условия эскплуатации -40 to +85ºC
Условия хранения -40 to +85ºC
Разъемы LC/APC
Вносимые потери ≤0.2dB
Обратные потери 65dB
Cтабильность ≤0.1dB
Долговечность ≤0.2dB, typical change 1000 matings
Взаимообмен ≤0.1dB
Предел прочности more than 10 kg
Длина пигтейла 1, 2, 4 m or custom length
Тип волокна G652D in stock or G657A, B on request
Цветовое кодирование Green Connector
Стандарты EN60794-1-23; EN60875-1:2012; Telecordia GR-326-CORE; EN50173

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
