SC SM Optlised adapterid


Uus toode

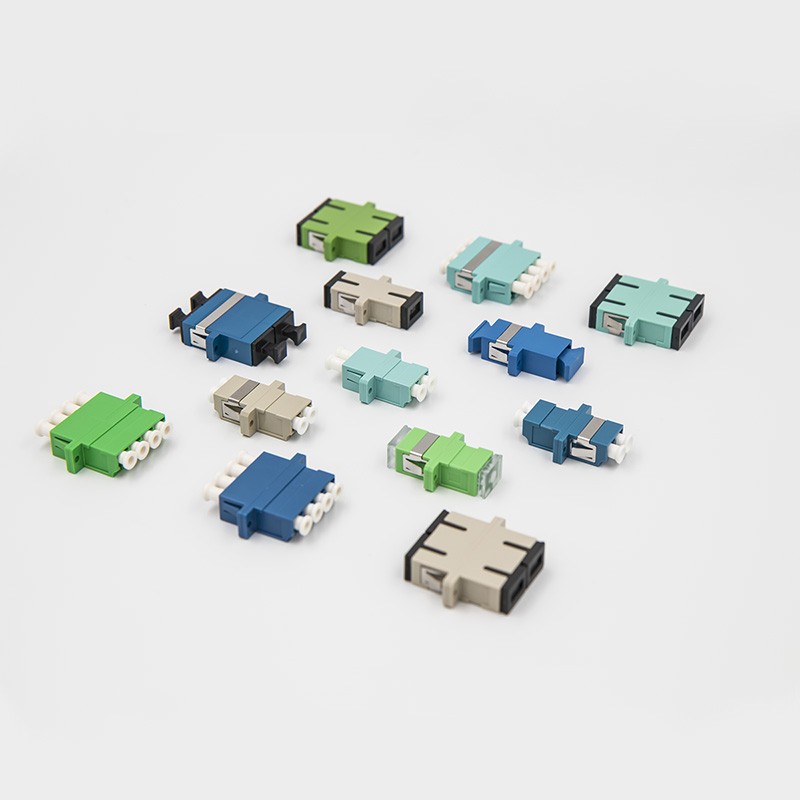

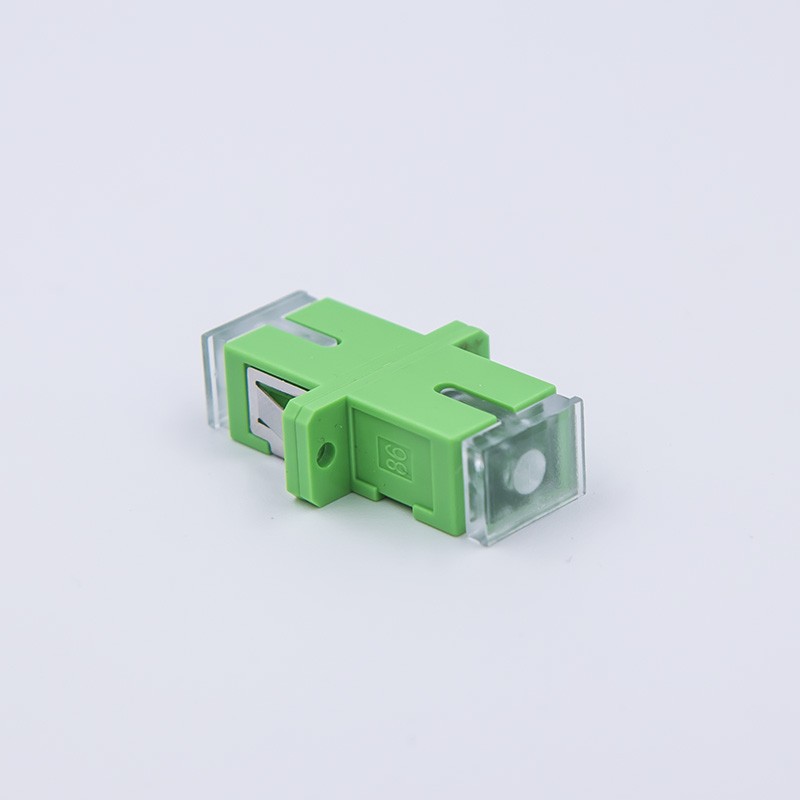

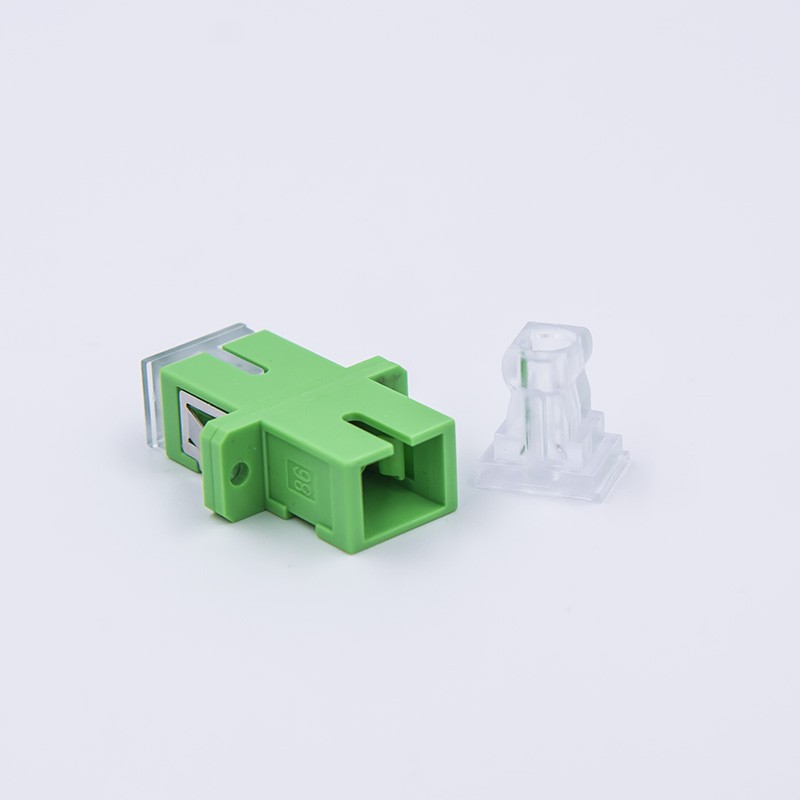

DNS Quad and Duplex singlemode SC/UPC and SC/APC adapters are designed to connect two/four fibers together with low insertion loss.

Rohkem infot


  • Zirconia/Ceramic sleeve
  • 100% tested
  • 25 Year DNS Warranty
  • RoHS Compliant
  • High Precision Alignment
  • Low Insertion Loss
  • Low Back Reflection Loss
  • High Temperature Stability
  • Simplex or Duplex
  • PHBR/Phosphor Bronze Alloy
  • Plastic housing
  • Excellent Environmental Stability
  • Excellent Mechanical Stability



DNS multimode adapters have ceramic sleeve for best performance. All adapters are included in DNS 25 year warranty system.


Code Description Package
200445 Adapter SC Duplex SM Blue
200247 Adapter SC Simplex SM Blue
200287 Adapter SC/APC Duplex SM Green
200248 Adapter SC/APC Simplex SM Green

Subject to change without notice

Töötingimused -40 to +85ºC
Hoiutingimused -40 to +85ºC
Pistikud SC/UPC, SC/APC
Sisestamise kaotus ≤0.2dB
Vastupidavus ≤0.2dB typical change 1000matings
Fiibri tüüp Singlemode
Standardid EN62754-4; EN60874-1:2012; EN50173

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
