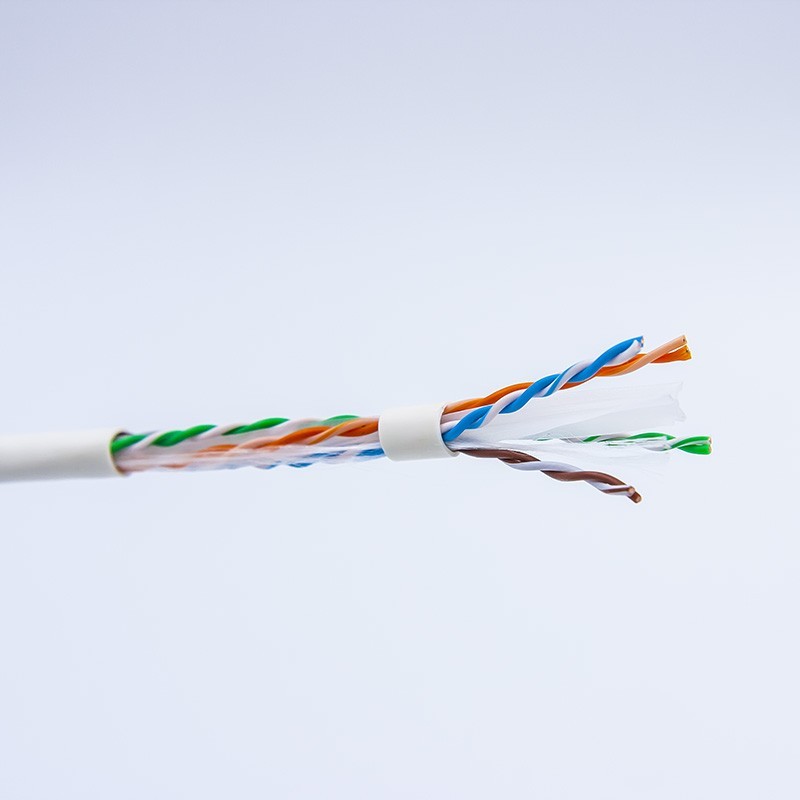

Cat 6 UTP Kaabel (LSOH), Eca Vaata suuremalt

Cat 6 UTP Kaabel (LSOH), Eca


Uus toode

Category 6 Unscreened LSOH Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 color coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths. Low Smoke and Halogen Free (LSOH) outer sheath.

Rohkem infot

Category 6 cables are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category 5 and 5e components.

Features and Benefits

  • Tape design engineered for smaller overall diameter and ease of installation
  • Low Smoke and Halogen Free (LSOH) outer sheath
  • Central "X" filler
  • 23AWG conductor
  • 100% tested according to ISO/IEC 11801, EN 50173-1
  • Characterized and tested to 250MHz
  • Positive PSACR up to 300MHz for future bandwidth requirements
  • Unique product-specific packaging for ease of identification
  • Every master reel is tested to ensure electrical performance compliance
  • Print legend contains footage marking from 305M to 0M
  • RoHS compliant
  • ETL / EC Verified
  • 25-year DNS warranty


Ordering information:

Code Description Package
400119 DNS UTP LSOH Cat6 Cable, Eca K305

Subject to change without notice

Mõõdud Box dimension 246 x 415 x 420 mm
Kaal 4.9 kg per 100 m; 15 kg per 305 m box
Töötingimused -20 to +60º C
Kategooria Category 6
Kaabli tüüp Keerdpaar (TP)
Isolatsioon PVC, 0.65 mm nominal thickness
Elektromagnetiline varjestus UTP
Klass CPR Eca
Paaride kogus 4
Dirigendi suurus Solid Bare Copper AWG23
Kaabli läbimõõt 6.5 mm ±0.2 mm
Pakend K305 (15 kg)
Minimaalne paadiradius 4x overall diameter installed, 8x during installation

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
