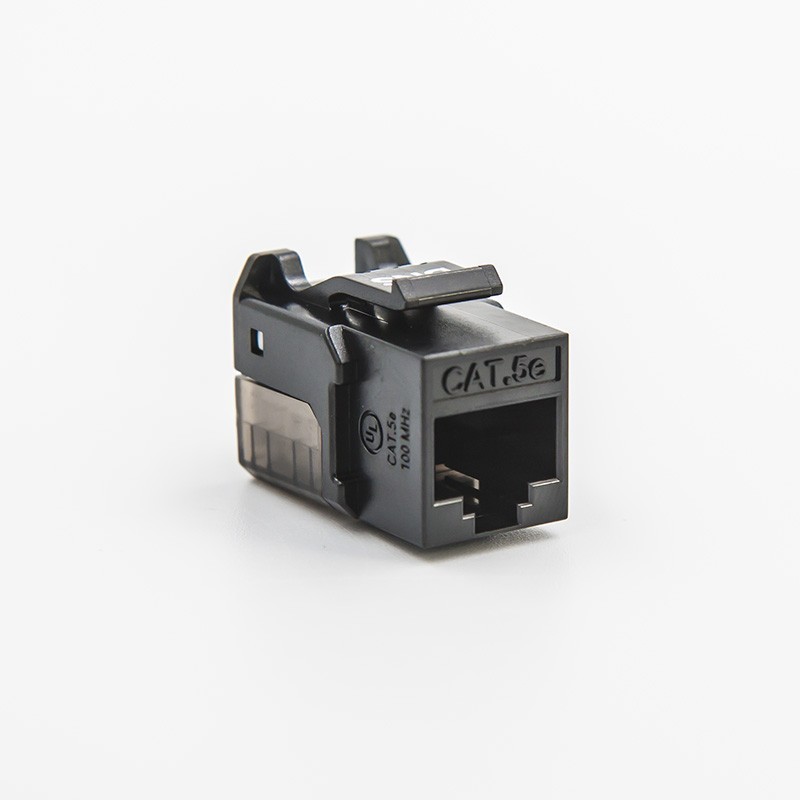

DNS Cat 5e UTP Keystone Jack T2

400802

Uus toode

The DNS Cat 5e Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment. Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.

Rohkem infot

Category 5e keystones are manufactured and tested to the Category 5e performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category 5 components.

FEATURES

  • EC Verified
  • RoHS Compliant
  • 3P verified
  • Tool-less
  • 90º angel
  • Color RAL9005
  • 50U" Gold PLated
  • 100% tested according to ISO/IEC 60512-27-100; ANSI/TIA 568-C.2
  • 25-year DNS Warranty
  • Easy preparation and installation



Ordering information:

Code Description
400802 DNS C5e UTP Keystone T2, black

Subject to change without notice

Töötingimused -10 to +60ºC (ISO/IEC 11801; ANSI/TIA 568C.2)

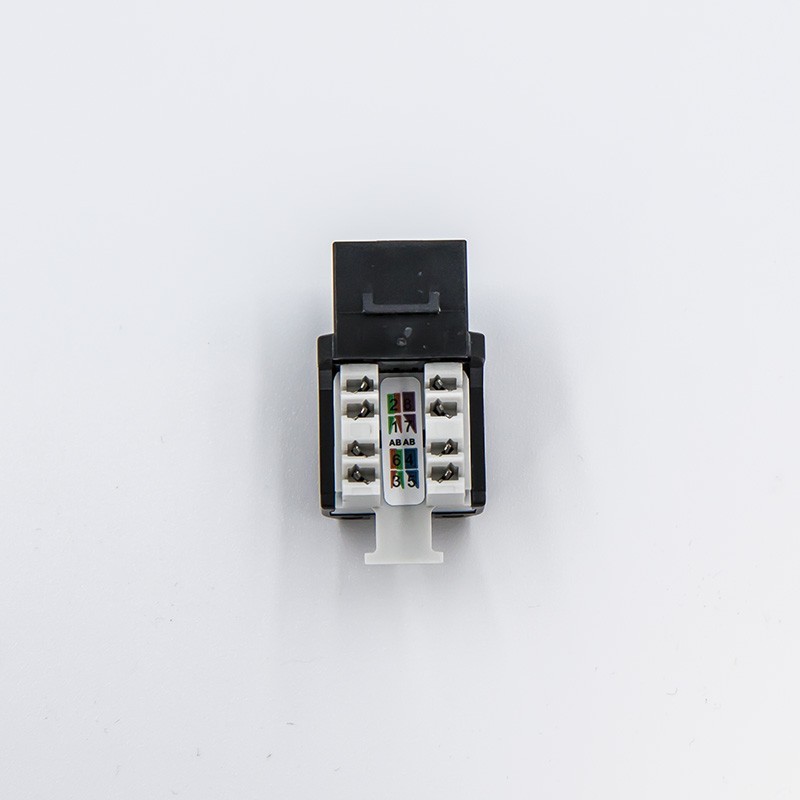

Juhtmestik T568A & T568B; 23-26AWG Solid Wire
Kategooria Category 5e
Jacki korpus ABS+PC UL94V-0
Sisestamise jõud 20N Max. (IEC60603-7-4)
Kinnipidamisjõud 7.7 kg between jack and plug
Elutsüklid 750 cycles min. (ISO/IEC 11801; IEC60603-7-4)
Elektrilised omadused Current 1.5A max.; Voltage 150V
Dielektriline taluvuspinge 1000VAC RMS 60Hz 1 min.

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
