DNS Cat 5e UTP 24-poordi patch paneel Vaata suuremalt

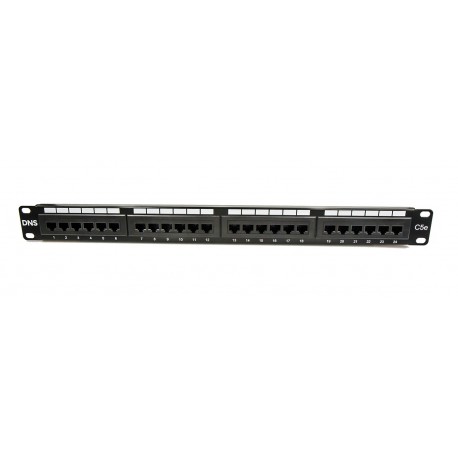

DNS Cat 5e UTP 24-poordi patch paneel


Uus toode

Loaded 19 inch Rackmount Patch Panels are used to fit your customized network system.

Rohkem infot

Category 5e patch panels are manufactured and tested to the Category 5e performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category 5 components.


  • EC Verified
  • RoHS Compliant
  • 100% tested according to ISO/IEC 11801; EN 50173-1; ANSI/TIA-568-C; IEC332-1
  • 25-year DNS Warranty
  • 110 & Krone punch Down Tool
  • 50 micro-inch Gold Plated


Ordering information:

Code Description
400810 DNS Cat5e UTP 24-port patch panel

Subject to change without notice

Töötingimused -10 to +60ºC (ISO/IEC 11801; ANSI/TIA 568C.2)
Juhtmestik T568A & T568B; 22-26AWG Solid and stranded wire
Kategooria Category 5e
Sisestamise jõud 20N Max. (IEC60603-7-4)
Kinnipidamisjõud 7.7 kg between Jack and Plug
Elutsüklid 750 cycles min. (ISO/IEC 11801; IEC60603-7-4)
Elektrilised omadused Current 1.5A max.; Voltage 150V
Dielektriline taluvuspinge 1000VAC RMS 660Hz 1 min.

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
