Cat 6 UTP Cable (PVC), Eca


New product

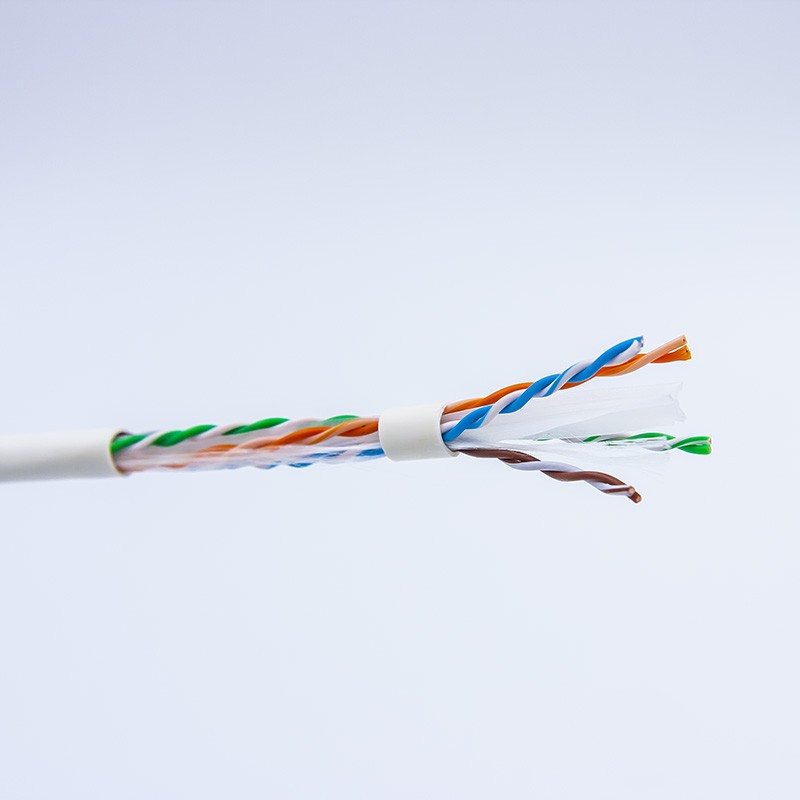

Category 6 Unscreened PVC Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 colour coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths.

More details

Category 6 cables are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category 5 and 5e components.

Features and Benefits

  • Tape design engineered for smaller overall diameter and ease of installation
  • PVC outer sheath
  • Central "X" filler
  • 23AWG conductor
  • 100% tested according to ISO/IEC 11801, EN 50173-1
  • Characterized and tested to 250MHz
  • Positive PSACR up to 300MHz for future bandwidth requirements
  • Unique product-specific packaging for ease of identification
  • Every master reel is tested to ensure electrical performance compliance
  • Print legend contains footage marking from 305M to 0M
  • RoHS compliant
  • ETL / EC Verified
  • 25-year warranty


Ordering information:

Code Description Package
400115 DNS UTP PVC Cat6 Cable K305

Subject to change without notice

Dimensions Box dimension 246 x 415 x 420 mm
Weight 4.9 kg per 100 m; 15 kg per 305 m box
Insulation PVC, 0.65 mm nominal thickness
Electromagnetic shielding UTP
Class CPR Eca
Number of pairs 4
Conductor size Solid Bare Copper AWG23
Cable diameter 6.1 mm ±0.3 mm
Packaging T305 (15 kg)
Minimum Bend Radius 4x overall diameter installed, 8x during installation

Warranty (EN)

DNS Warranty Program

Download (437.14k)

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
