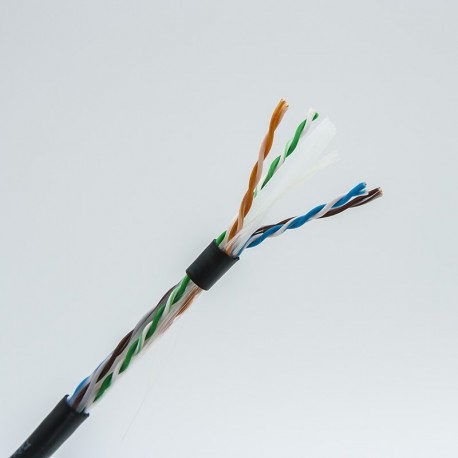

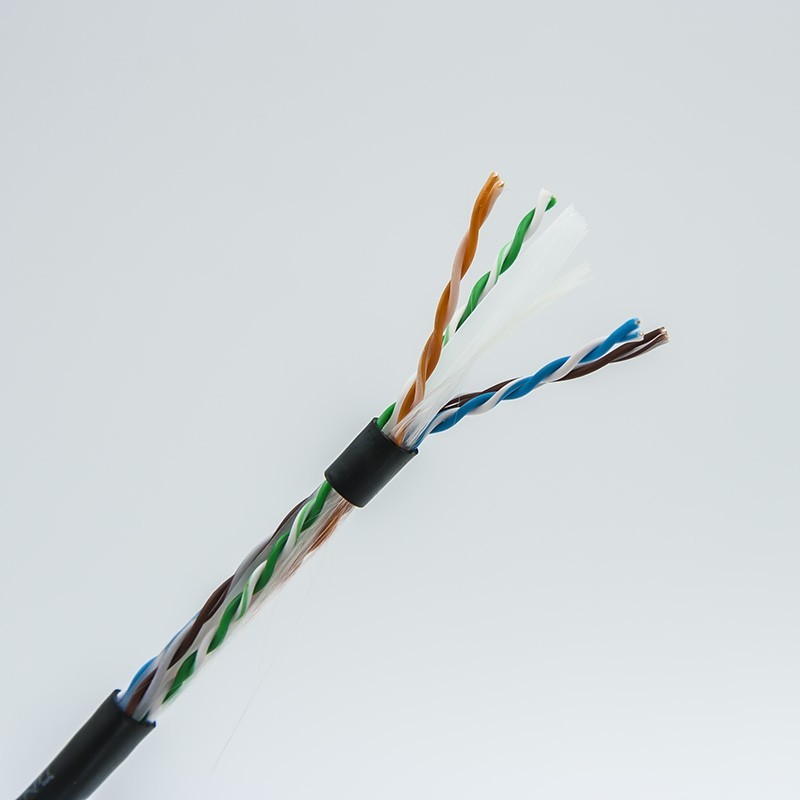

Category 6 Unscreened PE Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 color coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths.
Warning: Last items in stock!
Category 6 cables are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.
The cable is also compatible with Category 5 and 5e components.
|400104||DNS UTP PE Cat6 Outdoor Cable||K305|
Subject to change without notice
|Dimensions||Box dimension 246 x 415 x 420 mm|
|Weight||4.9 kg per 100 m; 15 kg per 305 m box|
|Operating conditions||-40 to +60º C|
|Insulation||UVHD-PE, 0.65 mm|
|Number of pairs||4|
|Conductor size||Solid Bare Copper AWG23|
|Cable diameter||6.1 mm ±0.3 mm|
|Packaging||K305 (15 kg)|
|Minimum Bend Radius||4x overall diameter installed, 8x during installation|
The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
