Cat 6 FTP Cable (LSOH)

400143

New product

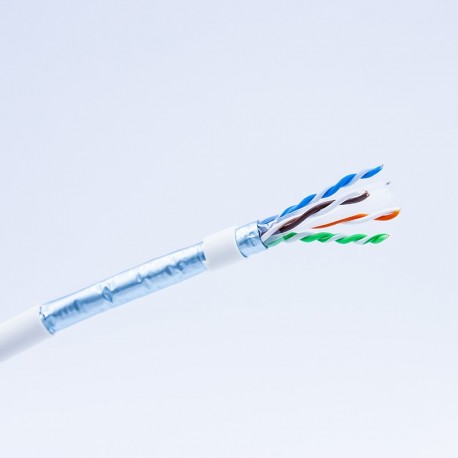

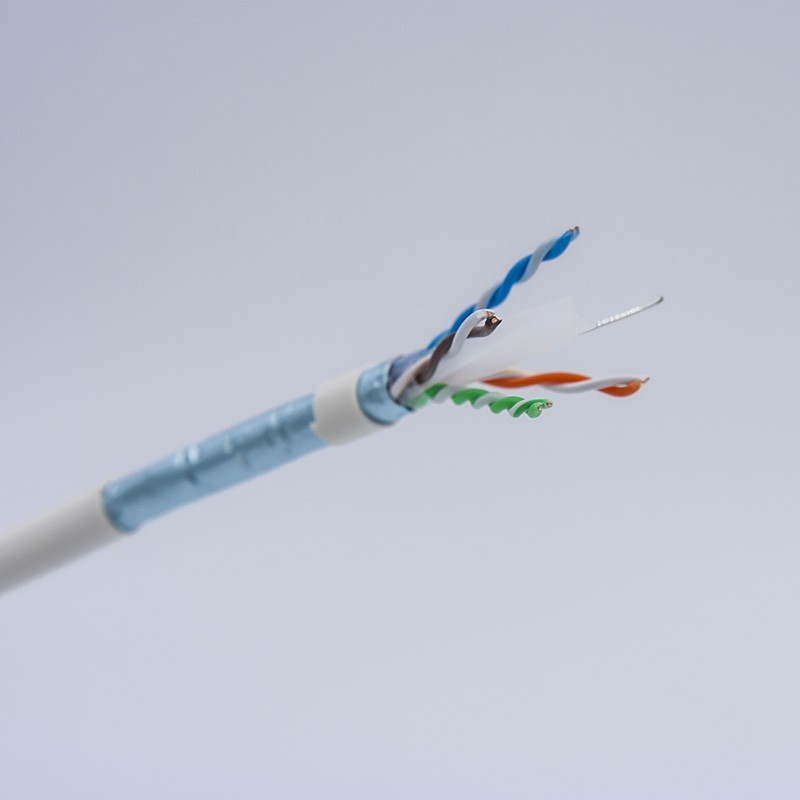

Category 6 shielded LSOH Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 color coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths. Low Smoke and Halogen Free (LSOH) outer sheath. Cable shielded with aluminum foil and polyester.

More details

Category 6 cables are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category 5 and 5e components.

Features and Benefits

  • Tape design engineered for smaller overall diameter and ease of installation
  • Low Smoke and Halogen Free (LSOH) outer sheath
  • Central "X" filler
  • 23AWG conductor
  • Rid Cord
  • Pairs in aluminium tape
  • 100% tested according to ISO/IEC 11801, EN 50173-1
  • Characterized and tested to 250MHz
  • Positive PSACR up to 300MHz for future bandwidth requirements
  • Unique product-specific packaging for ease of identification
  • Every master reel is tested to ensure electrical performance compliance
  • Print legend contains footage marking from 305M to 0M
  • RoHS compliant
  • ETL / EC Verified
  • 25-year DNS warranty



Ordering information:

Code Description Package
400133 DNS FTP LSOH Cat6 Cable T305

Subject to change without notice

Weight 25 kg per 305 m box
Operating conditions -10 to +60º C
Category Category 6
Cable type Twisted pair
Insulation LS0H, 0.65 mm
Electromagnetic shielding AL Foil / Polyester
Number of pairs 4
Conductor size Solid Bare Copper AWG23, 0.57 mm
Cable diameter 7.47 mm ±0.3 mm
Packaging T305 (25 kg)
Minimum Bend Radius 60 mm

Warranty (EN)

DNS Warranty Program

Download (437.14k)

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
