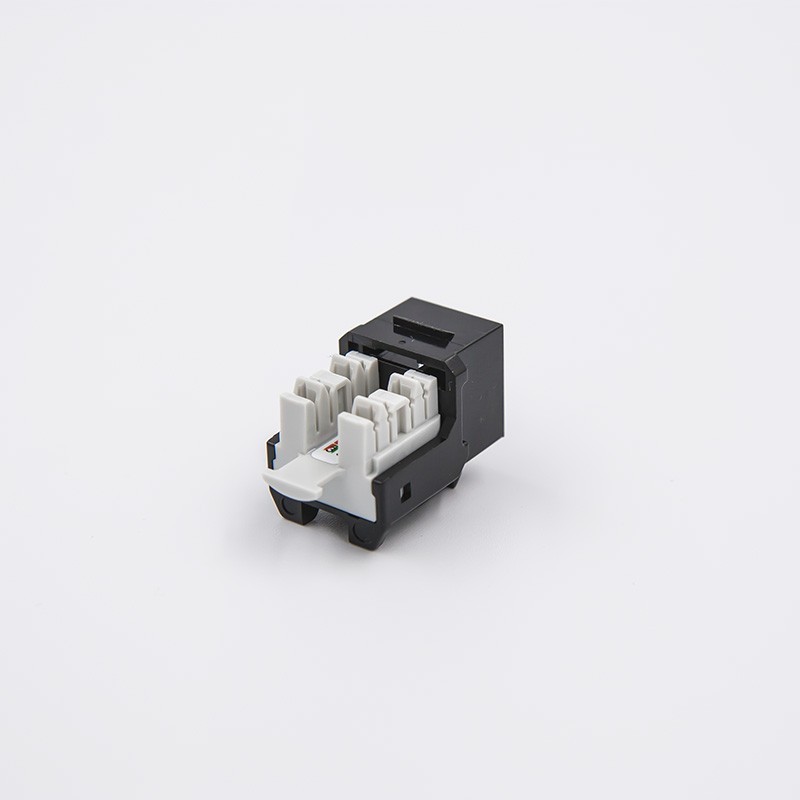

DNS Cat 6 UTP Keystone Jack T3
400804
New product
The DNS Cat 6 Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment. Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.
Category 6 keystones are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.
The cable is also compatible with Category 5 and 5e components.
FEATURES
- EC Verified
- RoHS Compliant
- 110 & Krone Punch Down Tool
- DNS QuickTool Compatible
- Color RAL9005
- 50U" Gold PLated
- 100% tested according to ISO/IEC 60512-27-100; ANSI/TIA 568-C.2
- 25-year DNS Warranty
- Easy preparation and installation
Ordering information:
| Code | Description | |
| 400804 | DNS C6 UTP Keystone T3 |
Subject to change without notice
| Operating conditions | -10 to +60ºC (ISO/IEC 11801; ANSI/TIA 568C.2) |
| Wiring | T568A & T568B; 23-26AWG Solid Wire |
| Jack housing | ABS+PC UL94V-0 |
| Insertion force | 20N Max. (IEC60603-7-4) |
| Retention force | 7.7 kg between jack and plug |
| Life cycles | 750 cycles min. (ISO/IEC 11801; IEC60603-7-4) |
| Electrical characteristics | Current 1.5A max.; Voltage 150V |
| Dielectric withstand voltage | 1000VAC RMS 60Hz 1 min. |
DNS Warranty System
The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
