400801
New product

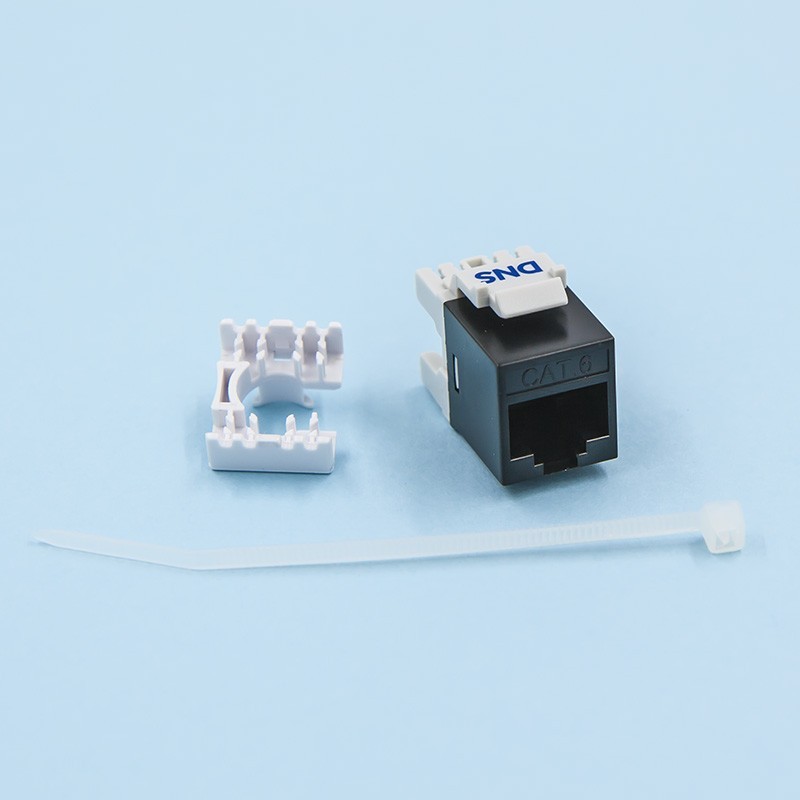

The DNS Cat 6 Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment. Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.
Warning: Last items in stock!
Availability date:
Category 6 keystones are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.
The cable is also compatible with Category 5 and 5e components.
Code | Description | |
400801 | DNS C6 UTP Keystone T2 |
Subject to change without notice
Operating conditions | -10 to +60ºC (ISO/IEC 11801; ANSI/TIA 568C.2) |
Wiring | T568A & T568B; 23-26AWG Solid Wire |
Jack housing | ABS+PC UL94V-0 |
Insertion force | 20N Max. (IEC60603-7-4) |
Retention force | 7.7 kg between jack and plug |
Life cycles | 750 cycles min. (ISO/IEC 11801; IEC60603-7-4) |
Electrical characteristics | Current 1.5A max.; Voltage 150V |
Dielectric withstand voltage | 1000VAC RMS 60Hz 1 min. |
The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
