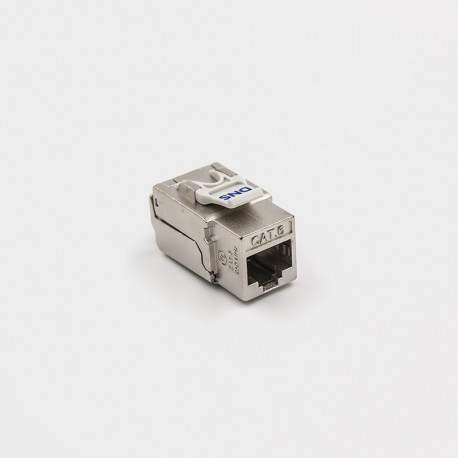

DNS Cat 6 STP Keystone Jack T3FS


New product

The DNS Cat 6 Shielded Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment. Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA 50173-1, ANSI/TIA-568-C, IEC332-1 requirements, this RJ45 shielded keystone jack provides the perfect solution for your Ethernet networks.

More details

Category 6 shielded keystones are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category 5 and Category 5e components.


  • EC Verified
  • RoHS Compliant
  • 3P verified
  • Fully shielded
  • Tool-less
  • Die-Cast body
  • 180º angel
  • 50U" Gold PLated
  • 100% tested according to ISO/IEC 11801; EN 50173-1; ANSI/TIA 568-C; IEC 332-1
  • 25-year DNS Warranty
  • Easy preparation and installation


Ordering information:

Code Description
400805 DNS C6 STP Keystone T3FS

Subject to change without notice

Operating conditions -10 to +60ºC (ISO/IEC 11801; ANSI/TIA 568C.2)
Wiring T568A & T568B; 23-26AWG Solid Wire
Category Category 6
Jack housing ABS+PC UL94V-0
Insertion force 20N Max. (IEC60603-7-4)
Retention force 7.7 kg between jack and plug
Life cycles 750 cycles min. (ISO/IEC 11801; IEC60603-7-4)
Electrical characteristics Current 1.5A max.; Voltage 150V
Dielectric withstand voltage 1000VAC RMS 60Hz 1 min.

Warranty (EN)

DNS Warranty Program

Download (437.14k)

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
